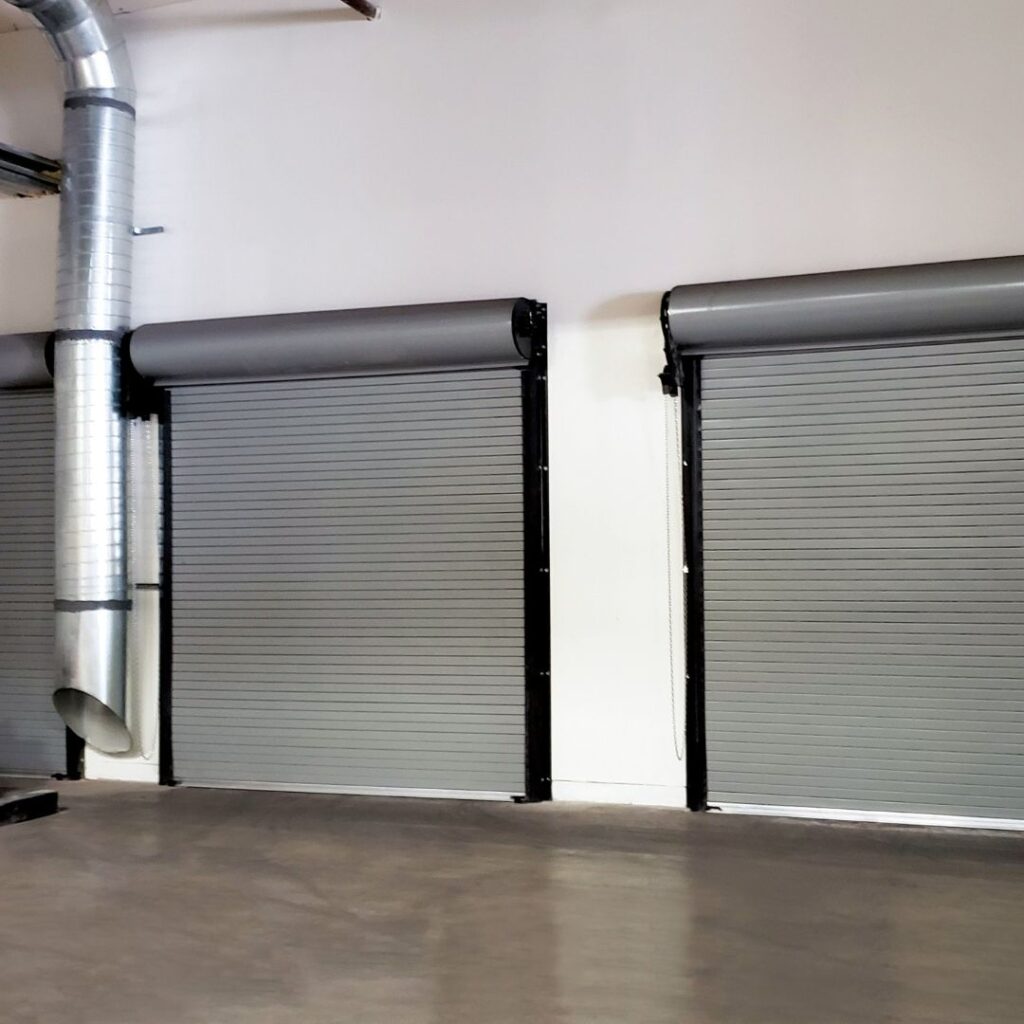

When an application requires weather protection the R&S “Thermal Guard” steel rolling service door is the right choice. Constructed using laid-in-place polyurethane insulation the curtain is an effective barrier against the elements. Rain, dust and wind are kept at bay by vinyl weatherstripping at the footpiece, guides and hood. Designed for sizes up to 30′ wide and 28′ high with a minimum 22 gauge exterior slat and a 24 gauge back slat these doors are constructed to stand against the elements.
All R&S doors are designed to withstand up to 80 mph winds and can be upgraded for more severe weather conditions. Curtains can be ordered in standard grey or in tan with contrasting black guides and footpiece. A galvanized steel finish is also offered providing the look and protection of stainless steel without the cost.
Thermal Guard Service Doors come with a 2 year/ 20,000 cycle warranty. See Warranty Page for details
Part 1 General
1.01 Summary
A. Service doors excluding design, construction and preparation of openings; finish or field painting; access panels; electrical wiring, conduit, wire, fuses and disconnect switches.
1.02 Performance
A. Windload: Service doors are designed to withstand a minimum 20 PSF windload.
B. Usage: Service doors are designed to operate a minimum of 20,000 cycles.
Part 2 Products
2.01 Materials
A. Manufacturer: R & S Manufacturing, model I ___
B. Mounting: Interior or exterior face of wall or between-jamb
C. Operation: Chain hoist is standard. Awning crank, crank box or motor operation are optional.
D. Curtain: Interlocking type 25 flat slats are roll formed from galvanized steel coil. 22 gauge slat (18 or 20 gauge optional) is based on size of opening as required to meet windload. Polyurethane foam, 3/4″ thick, is laid in place for complete coverage and concealed by a 24 gauge back slat (22 gauge back slat optional). Endlocks are riveted to slats to maintain curtain alignment. Windlocks are riveted to slats when required to meet windload. Bottom of curtain is reinforced by an extruded aluminum or double steel angle footpiece with astragal.
E. Guides: Structural steel angles form curtain guides and are bolted to structural steel wall angles. Sizes of guides are as required to retain curtain under windload. Windlock bars are provided when windlocks are required to meet windload. Vinyl guide weatherstripping against the flat-faced side of the slats is standard (wool pile, brush, or weatherstripping on both sides of the curtain are optional).
F. Brackets: Steel plate brackets are bolted to wall angles to support curtain and barrel and provide mounting for hood.
G. Barrel: Minimum 6″ diameter steel pipe houses torsion spring assembly and supports curtain with a maximum deflection of .03 inch per foot of width. Torsion springs are mounted on a continuous cold rolled steel shaft, adjustable by a tension wheel outside one bracket.
H. Hood: Formed from minimum 24 gage galvanized steel sheet, reinforced with top and bottom flanges to limit deflection. Internal vinyl hood baffle is standard. Intermediate support is provided when required.
I. Locking: Chain lock with chain operation with optional slidebolt locks.
Part 3 Execution
3.01 Installation
A. Service doors are to be installed by an R & S authorized representative in accordance with R & S installation instructions.
(1) Standard design will allow the rolling door to be operable after having been subjected to a uniform constant load of 20 PSF. Curtain slat deformation may occur and there is no guarantee of operability while under load unless such a requirement is stated by the specifier. Windload forces acting on the rolling door slats may cause severe loadings at the jambs. The building door jamb construction (walls, steel structure, etc.) must be designed to withstand the anticipated loads.
(2) Frequency requirements must specify for the door operator and all components a fixed number of cycles for an expressed period of time and include a sealed counter device. A cycle is defined as an action on the door from fully closed, to the fully open, and returned to the fully closed position.
Thermal Guard Options
Increased Windload Capacity: Curtain designs to withstand windloads exceeding 20PSF
High Cycle Construction: Designs to provide up to 150,000 operating cycles or maximum possible in design.
Vision Lites: Single or multiple 3″ wide cutouts, covered with acrylic.
Powder Coat Finish: Available on all exposed surfaces, powder coating is a durable and decorative finish for steel or aluminum surfaces that provides longer life and requires less maintenance than a standard finish. Available in a variety of colors. Consult factory for color selection, applications and limitations.
Galvanized Finish: Hot dip Galvanizing available on footpiece, guides and brackets
Sloped Footpiece: For door openings on a slope
Cylinder Locks: Installed on footpiece or guide.
Pass Door: 3′-0″ x 7′-0″ x 1-3/4″ thick hollow metal grey primed (black optional) door in a steel frame for access through the curtain when closed; frame is hinged to guide and swings clear to allow use of entire door opening when curtain is raised; Standard hardware includes lever lock with optional deadbolt; handicap option, custom sizes, windows and special hardware available.
Side Room Requirements
Opening Width ‘W’
X”
Y”
Up to 15′
6
8
15′-24′
7
9
R/H chain operation as shown – reverse ‘X’ & ‘Y’ for L/H
| Side Room Requirements | ||
| Opening Width ‘W’ | X” | Y” |
| Up to 15′ | 6 | 8 |
| 15′-24′ | 7 | 9 |
Head Room Requirements
Area
Z”
V”
A
20
16-3/4
B
22
17
C
23-1/2
18-1/2
D
25-1/2
20-1/2
E
29-1/2
24-1/2
F
Consult
Factory
Consult
Factory
Reduce ‘Z’ by 2″ with top hood flange turned down
| Head Room Requirements | ||
| Area | Z” | V” |
| A | 20 | 16-3/4 |
| B | 22 | 17 |
| C | 23-1/2 | 18-1/2 |
| D | 25-1/2 | 20-1/2 |
| E | 29-1/2 | 24-1/2 |
| F | Consult Factory | Consult Factory |
